Aluminum Expanded Metal Mesh for Facade Screen/Heavy Duty Expanded Metal Mesh / Expanded Metal Sheet
Expanded metal mesh is the industry a variety of metal mesh, also known as expanded metal, diamond wire mesh, iron wire mesh, metal expansion net, heavy steel plate net, pedal mesh, stainless steel mesh, granary, antenna wire mesh, filter mesh, acoustics meshes, etc
Expanded metal mesh: low carbon steel, stainless steel plate, aluminum plate, copper plate, nickel plate, aluminum and magnesium alloy plate and other metal plate
Expanded metal mesh surface treatment: PVC dip molding(plastic spraying, plastic coated), hot-dipped galvanized, electric galvanized, spray paint, etc

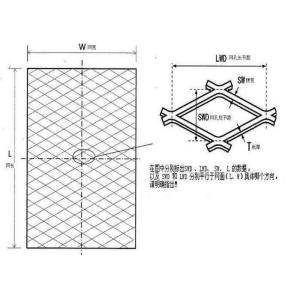

Specification
| Thickness | SWD | LWD | wire stems width | Width | Length | Weight |
| (mm) | (mm) | (mm) | (mm) | (m) | (m) | (kg/m2) |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5.00 |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
| 4 | 60 | 120 | 4 | 2 | 7.5 | 4 |
| 4 | 80 | 180 | 4 | 2 | 10 | 3 |
| 4 | 100 | 200 | 4 | 2 | 12 | 2.5 |
| 4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
| 5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
| 5 | 75 | 150 | 5 | 2 | 10 | 3.0 |
| 6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 |
| 8 | 50 | 100 | 8 |
Stainless Steel Expanded Metal is a sheet product that has been slit and stretched to a wide array of diamond shaped openings. Stainless steel expanded metal offers savings in weight and metal, free passage of light, liquid, sound and air, while providing a decorative or ornamental effect.Specifications: MIL-S-46044A, AISI 304/304L, Available in flattened (smooth) and standard (raised) surface.
Expanded metal mesh specification
| Thickness | SWD | LWD | wire stems width | Width | Length | Weight |
| (mm) | (mm) | (mm) | (mm) | (m) | (m) | (kg/m2) |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5.00 |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
| 4 | 60 | 120 | 4 | 2 | 7.5 | 4.0 |
| 4 | 80 | 180 | 4 | 2 | 10 | 3.0 |
| 4 | 100 | 200 | 4 | 2 | 12 | 2.5 |
| 4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
| 5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
| 5 | 75 | 150 | 5 | 2 | 10 | 3.0 |
| 6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 |
| 8 | 50 | 100 | 8 | 2 | 2.1 | 28.26 |
